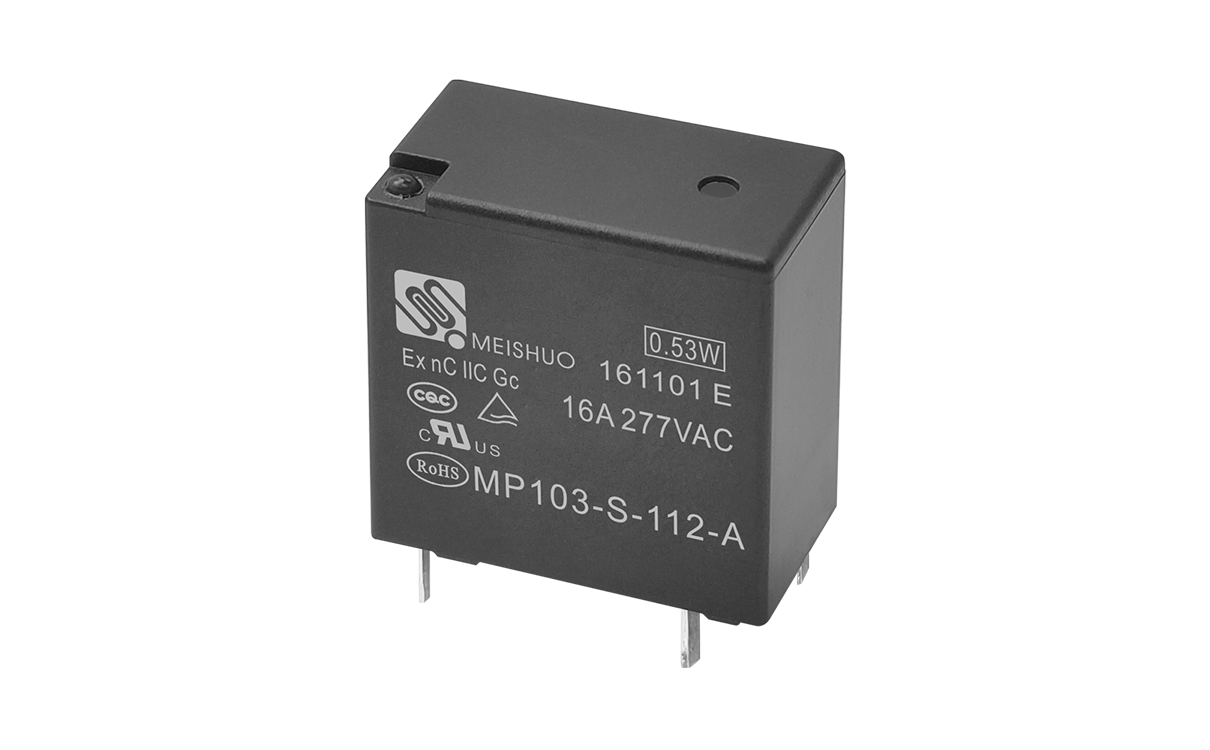

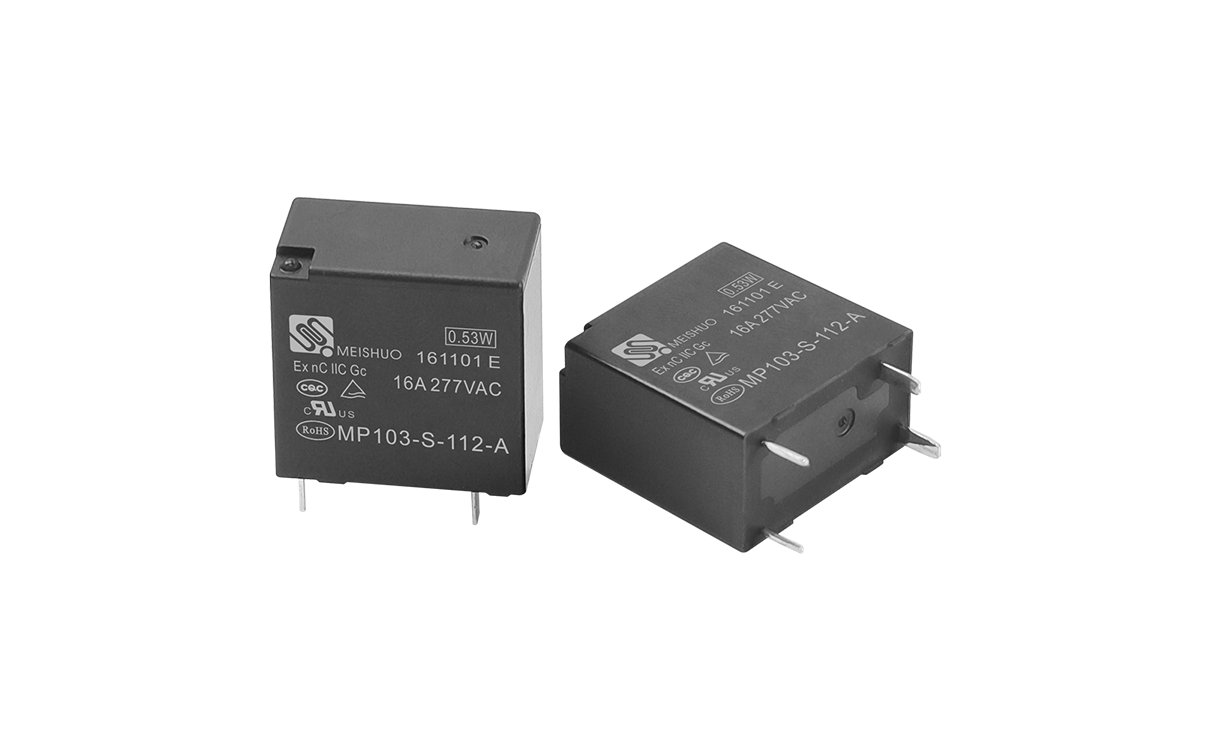

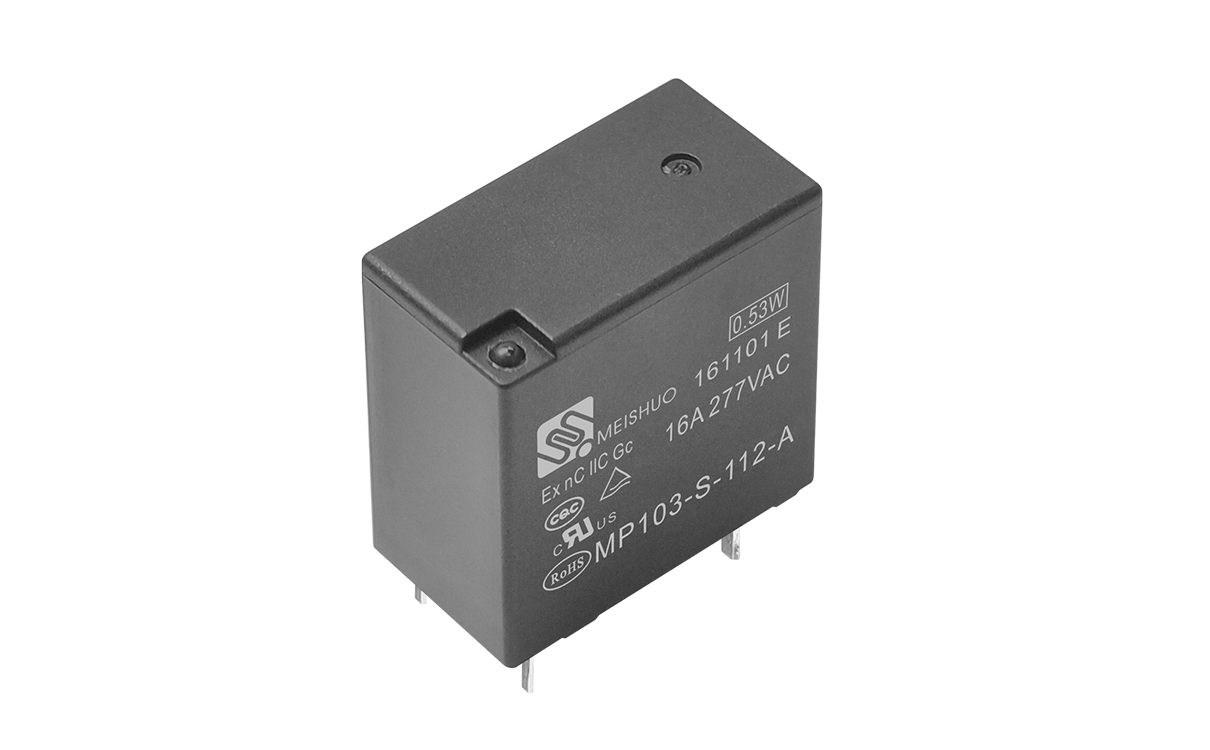

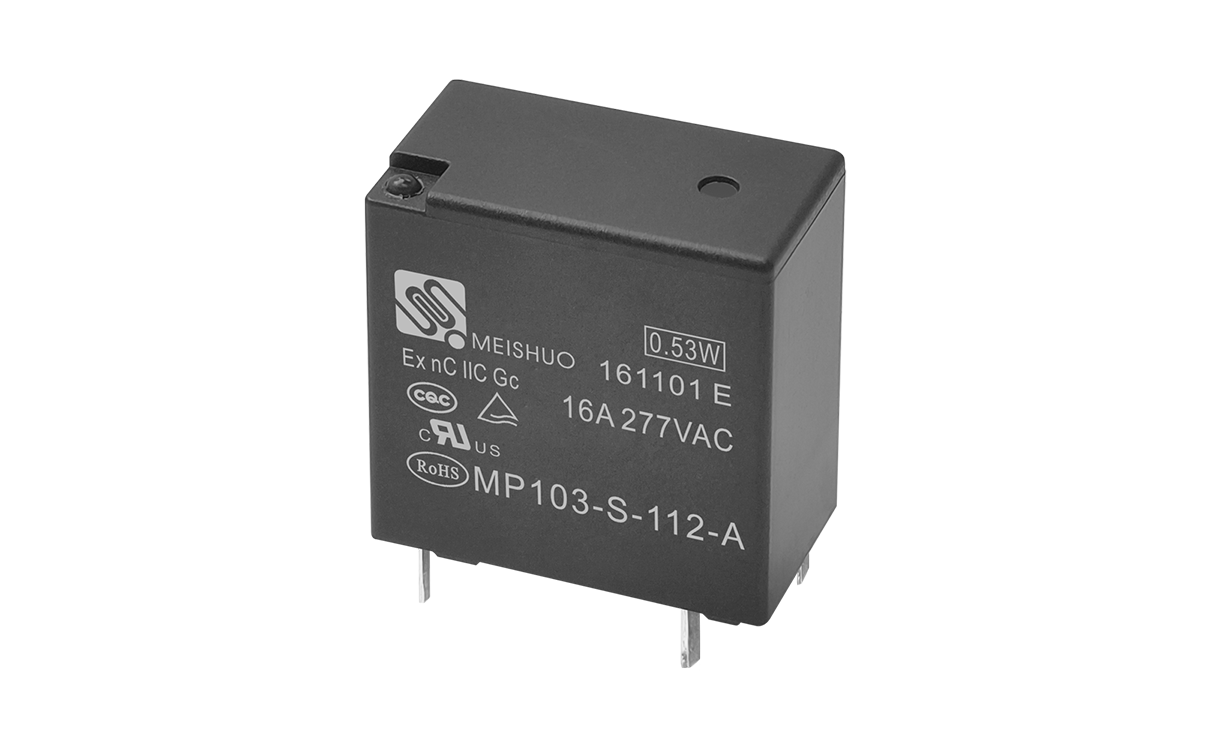

1.One set of 16A normally open contact form
2.4KV Coil and contact dielectric withstand voltage
3.UL insulation grade: Class F
4.Meet the reinforced insulation, creepage distance of 6.4mm or more
5.IEC60335-1 compliant products are available.
5.IEC60079 compliant products are available
6.Available to meet 16A 100,000 cycles electrical durability
7.Outline dimensions: L18.4×W10.2×H18.2mm
Contact Parameters
| Contact Arrangement | 1A | |
| Contact Material | Silver Alloy | |
| Contact Resistance (Initial) | ≤100mΩ（1A 6VDC） | |
Contact Rating(Res. load) | 16A 277VAC | |
| Max. Switching Current | 16A | |
| Max. Switching Voltage | 227VAC | |
| Max. Switching Power | 4432VA | |
Electrical Life | ≥ 1×106 Ops | |
| Mechanical Life | ≥ 5×106 Ops | |
Characteristics
| Insulation Resistance | 1000MΩ(500VDC) |
Dielectric Strength | Between Coil & Contacts: 4000VAC 1min |
| Between Open Contacts: 1000VAC 1min | |
| Operate Time | ≤10ms |
| Release Time | ≤5ms |
| Ambient Temperature | -40°C ~+85°C |
| Vibration Resistance | 10Hz~55Hz 1.0mm (DA) |
Shock Resistance | Functional: 98m/s²(10G) |
Destructive: 980m/s²(100G) | |
| Terminal Form | PCB |
| Construction | Wash tight |
| Unit Weight | Approx. 6.8g |
