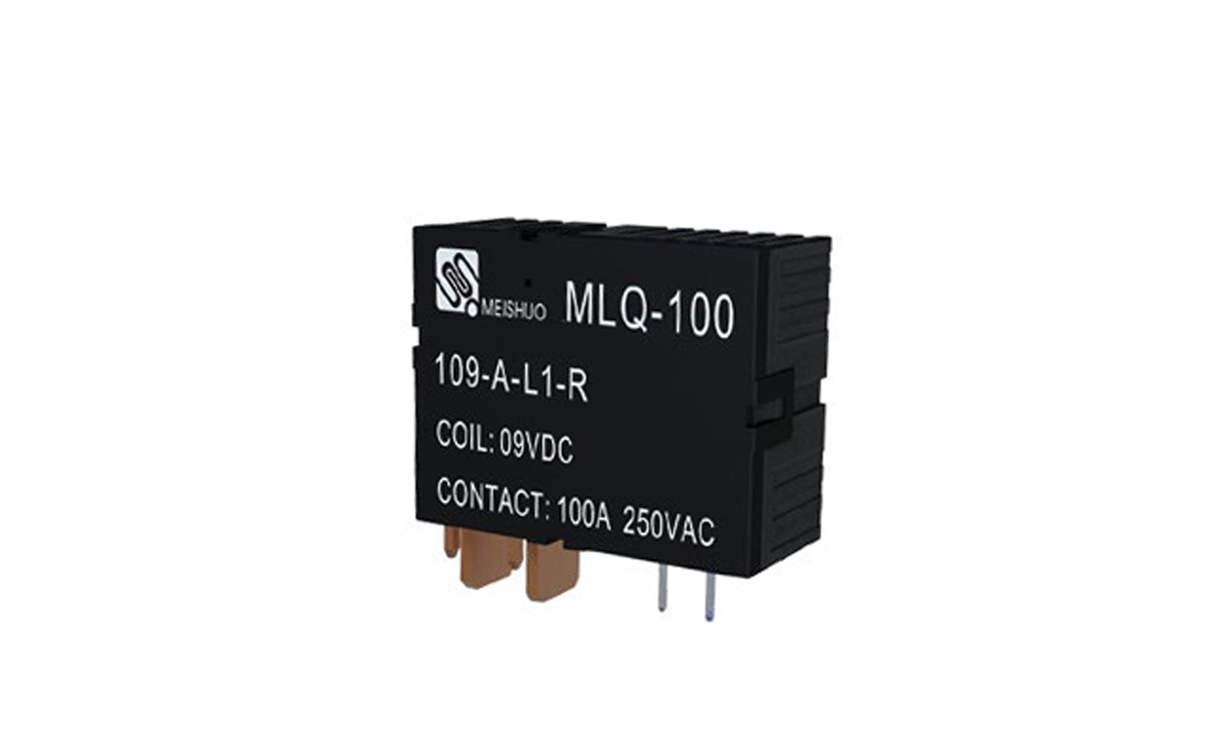

100A switching capability
4KV Dielectric strength between coil & contacts
Environmental friendly product(RoHS Compliant)
Accessories can be welded according to customer requirements
Profile Dimension L×W×H: 39×30×18.5mm
Contact Parameters
| Contact Form | 1a，1b |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤ 1.0mΩ（1A 6VDC） |
Contact Rating (Res. load) | 100A 250VAC |
| Max.Switching Current | 100A |
| Max.Switching Voltage | 250VAC |
Max.Switching Power | 25000VA |
| Electrical Life | 1×104 OPS |
| Mechanical Life | 1×105 OPS |
Characteristics
| Insulation Resistance | 1000MΩ Min.（500VDC） | |
Dielectric Strength | Between Coil & Contacts: 4000VAC 1min | |
Between Open Contacts: 2000VAC 1min | ||
| Set Time | ≤ 20ms | |
| Reset Time | ≤ 20ms | |
| Shock | Functional | 98m/s² |
| Destructive | 980m/s² | |
| Vibration | 10Hz~55Hz 1.5mm（DA） | |
| Humidity | 5%~85%RH | |
| Ambient Temperature | -40℃~+85℃ | |
| Construction | Dust Protected | |
| Unit Weight | Approx.55g | |
