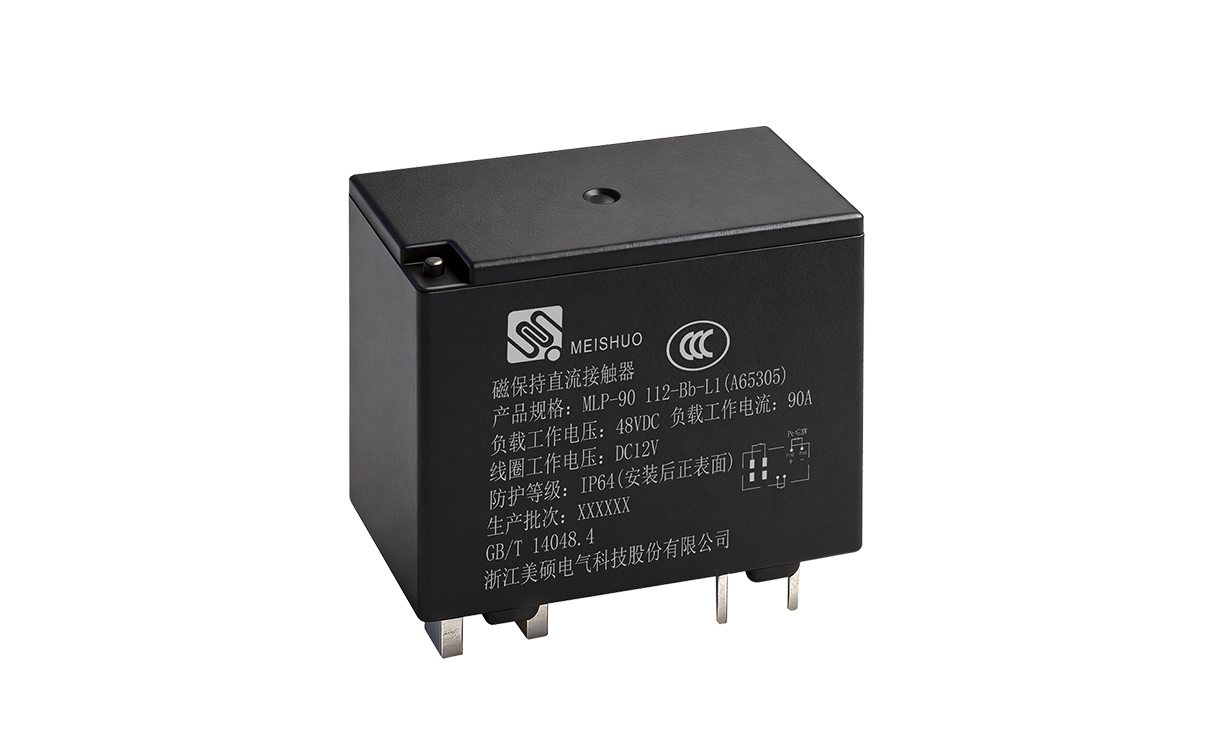

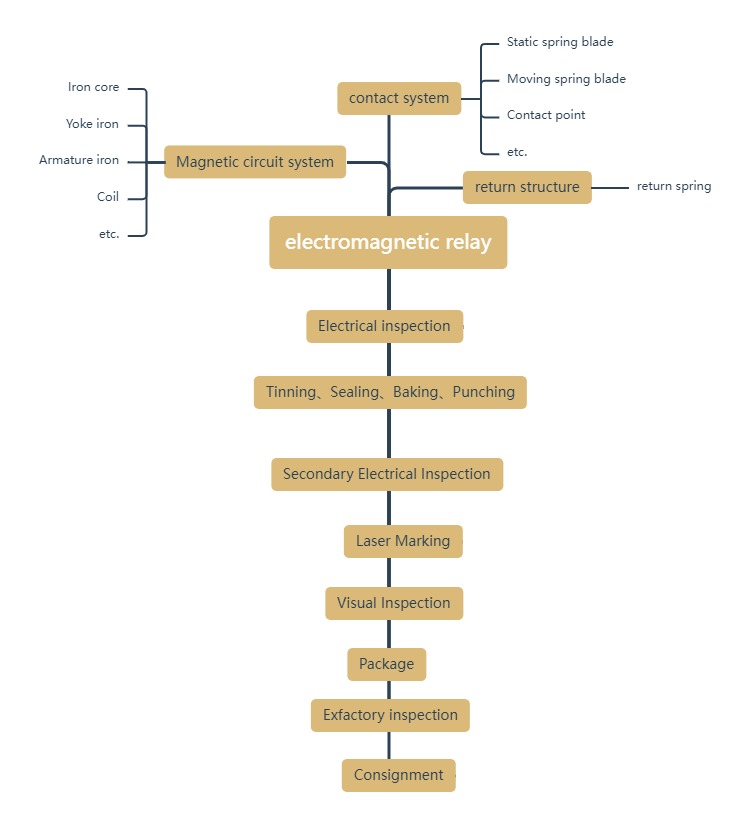

Bistable magnetic holding relay.
90A load currents are optional.
Good vibration resistance and shock resistance.
Applicable to new energy vehicle charging piles.
Outline dimensions：30.0×16.2×25.5mm.
Contact Parameters
| Contact Arrangement | A、B、Aa、Bb |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤0.8mΩ（20A 6VDC）(Initial) |
| Max. Switching Current | 90A |
Max. Switching Voltage | 48VDC |
| Max. Switching Power | 4320W |
| Electrical Life | ≥ 6×103 次 Ops (23±5℃，1s On: 9s Off， Magnetic Blow-Out) |
| Mechanical Life | ≥3×105 OPS |
Characteristics
| Insulation Resistance | 1000MΩ （500VDC） |
Dielectric Strength | Between Coil & Contacts:1500VAC 1min |
| Between Open Contacts: 1500VAC 1min | |
| Between Coil & Contacts:1500VAC 1min | |
Between Coil & Contacts:1000VAC 1min | |
| Surge Voltage | 10kV（1.2/50us） |
| Set Time | ≤ 20ms |
| Reset Time | ≤ 20ms |
| Ambient Temperature | -40℃ ~+105℃ |
| Vibration Resistance | 10Hz~55Hz 1.5mm（DA） |
| Shock Resistance | Functional: 98m/s2(10G) |
Destructive: 980m/s2(100G) | |
| Terminal Form | PCB |
| Construction | Sealed，Wash Tight |
| Unit Weight | Approx.25g |
We offer a one-year product warranty. If any issues arise within this period due to product defects, we will provide free replacements or refunds.
