understanding latching relays: mechanism, types, and applications
Release time:2025-03-23 20:13:19
Latching relays, also known as bistable relays, are unique devices that serve a crucial role in various electronic systems, particularly in automation, control systems, and power management. Unlike conventional relays that require continuous electrical power to maintain their state, latching relays can maintain their position after being activated, requiring power only to change their state. This characteristic makes them highly efficient and versatile in applications where energy conservation is important or where a relay needs to maintain its position without constant power.
What is a Latching Relay?

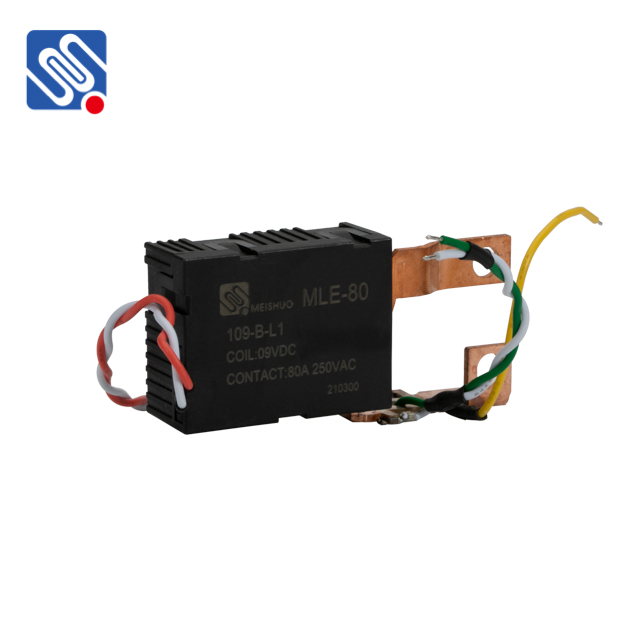

A latching relay is an electromechanical switch that has two stable states: “latched” and “unlatched.” The main feature that distinguishes a latching relay from regular relays is that it retains its last position even after the electrical control signal is removed. To change its state, a pulse of current is applied, which either latches or unlatches the relay. This mechanism makes latching relays particularly advantageous in systems where the relay needs to hold its state over time without continuous energy input.
There are typically two types of latching relays: single-coil and double-coil. In a single-coil latching relay, a pulse of current changes the state of the relay, and the relay stays in that state until another pulse of current is sent to reverse it. In a double-coil latching relay, two separate coils are used to set and reset the relay's state, providing more control over the relay's behavior.
