understanding bistable relay: a key component in modern electronics
Release time:2025-04-25 12:54:39

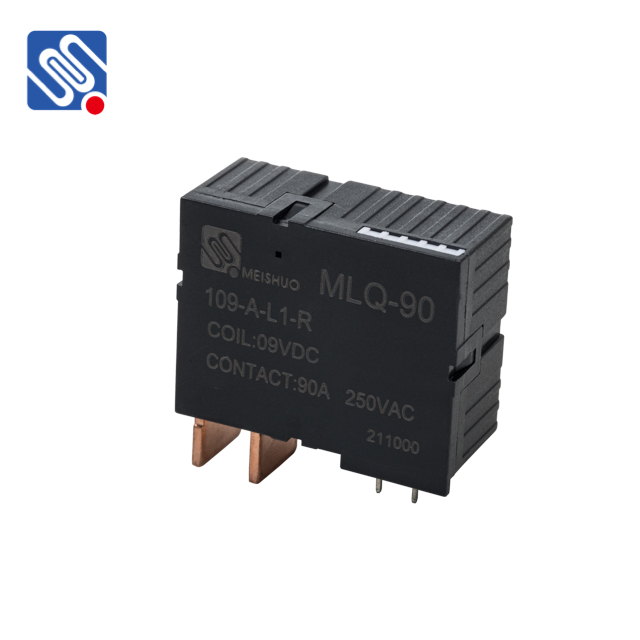

A bistable relay, also known as a latching relay, is an electrical component widely used in various automation systems and devices. Unlike conventional relays, bistable relays have two stable states, which can be toggled by applying a pulse signal. These relays play a crucial role in reducing power consumption and enhancing the efficiency of electrical circuits. In this article, we will explore the working principle, applications, and advantages of bistable relays, and understand why they are becoming increasingly popular in modern electronic systems.
Working Principle of a Bistable Relay
A bistable relay operates in two distinct states: the latched state and the unlatched state. The key feature of this relay is its ability to maintain the current state even after the control signal is removed, which makes it different from traditional relays that require continuous power to hold the state.
The bistable relay typically consists of an electromagnet, a set of contacts, and a mechanical latch. When a pulse is applied to the relay, it either switches to the latched or unlatched state depending on the direction of the pulse. In the latched state, the relay remains in that position until another pulse is applied to switch it to the opposite state. This feature is crucial for applications where the relay needs to stay in a particular state without requiring a constant power supply.
