understanding relay datasheet: a comprehensive guide
Release time:2025-06-27 21:15:03
A relay is an essential electrical component used in numerous electronic circuits and devices to control the flow of electricity. It functions as an electrically operated switch that allows a low-power signal to control a high-power circuit, providing isolation and safety. Relay datasheets are crucial tools that provide engineers and designers with the necessary information to select and utilize relays effectively in their designs. In this article, we will delve into the significance of relay datasheets, key features they include, and how to read and interpret the information they provide.
What is a Relay?

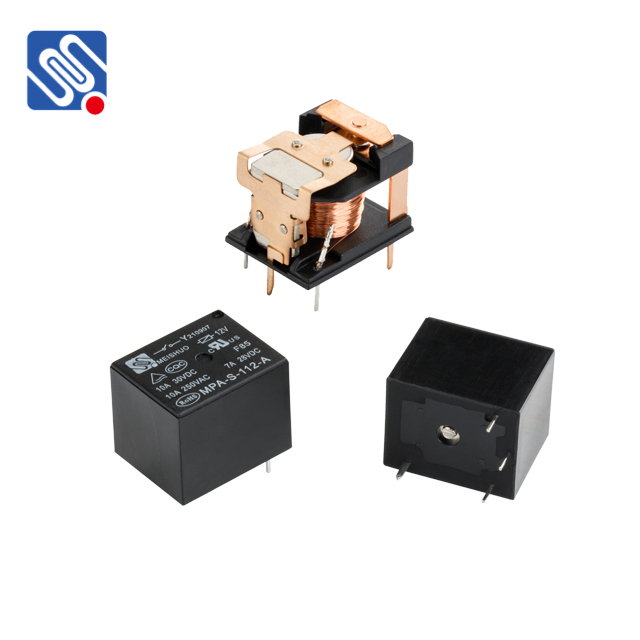

A relay consists of an electromagnet, an armature, a spring, and contacts. When a current flows through the electromagnet, it generates a magnetic field that pulls the armature, which either opens or closes the contacts in the circuit. This switching mechanism allows the relay to control high-power circuits using low-power control signals. Relays are often used in automotive, industrial, telecommunications, and home automation systems, where they perform tasks such as switching lights, controlling motors, and protecting circuits from overloads.
Importance of Relay Datasheets
