understanding bistable relays： low power, high efficiency switching
Release time:2025-08-31 06:49:59
Bistable relays, also known as latching relays, are an essential component in modern electronics, offering unique benefits in terms of power efficiency, reliability, and versatility. Unlike traditional relays that require continuous electrical power to maintain their states, bistable relays can hold their position with minimal power once switched. This feature makes them ideal for a wide range of applications, from automation systems to consumer electronics. In this article, we will explore the functioning, advantages, and applications of bistable relays, as well as their role in energy-efficient designs.
What is a Bistable Relay?

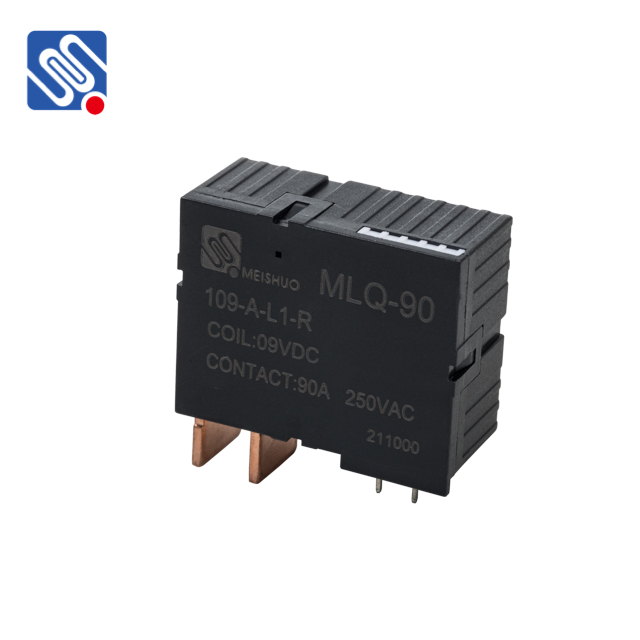

A bistable relay is a type of electromagnetic relay that can exist in two stable states： "ON" (closed) or "OFF" (open). The key characteristic that sets it apart from standard relays is its ability to maintain its state without requiring continuous power. Once a bistable relay is activated and switched to one of its states, it remains there until an external signal is sent to change its position. This is achieved using a mechanism that latches the relay in place, often through a permanent magnet or mechanical latching.
How Does a Bistable Relay Work?
The working principle of a bistable relay is straightforward but effective. The relay contains two coils, each associated with a different state—one for "ON" and one for "OFF." When a control voltage is applied to one coil, it energizes the relay, moving it from one state to another. Importantly, once the relay switches, it remains in the new state without requiring constant power to maintain it.
