exploring the functionality and applications of relay 12v in modern circuits
Release time:2025-09-13 00:03:47
A 12V relay is an indispensable component in the world of electronics and electrical systems. It serves as an electrically operated switch that allows a low-voltage control circuit to control a high-voltage power circuit. This simple yet effective tool is commonly found in a wide range of applications, from automobiles to home appliances and industrial automation systems. This article will explore the working principle, features, and practical applications of the 12V relay in modern circuits.
Understanding the Basics of a 12V Relay
A relay is an electromagnetic switch that consists of a coil and a set of contacts. When a voltage is applied to the coil, it generates a magnetic field that attracts a movable armature. This action causes the contacts to either open or close, depending on the relay’s configuration.

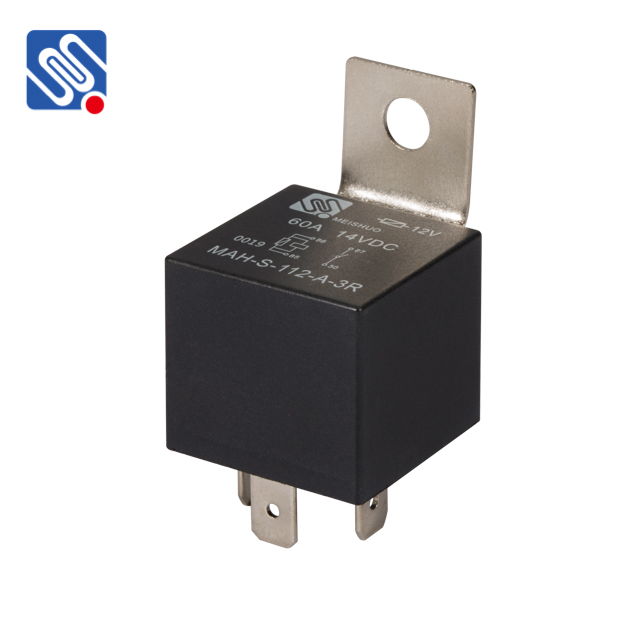

The 12V relay, as the name suggests, operates at a control voltage of 12V, typically a DC voltage. In most cases, the low-voltage side (control circuit) is powered by a 12V source, such as a car battery or a power supply unit. The relay’s contacts, on the other hand, can switch high-voltage or high-current circuits, which makes it an essential tool for controlling large appliances or motors using smaller control signals.
