the role and applications of 12v dc relay in modern electronics
Release time:2025-09-13 22:22:46
A 12V DC relay is a widely used electrical component that plays an essential role in controlling circuits with low voltage to switch higher power applications. These relays provide a means to safely control higher current or voltage circuits without directly exposing the low voltage circuit to potentially dangerous electrical hazards. As electronics continue to advance, understanding the function, design, and various applications of a 12V DC relay becomes crucial for engineers, hobbyists, and technicians alike.

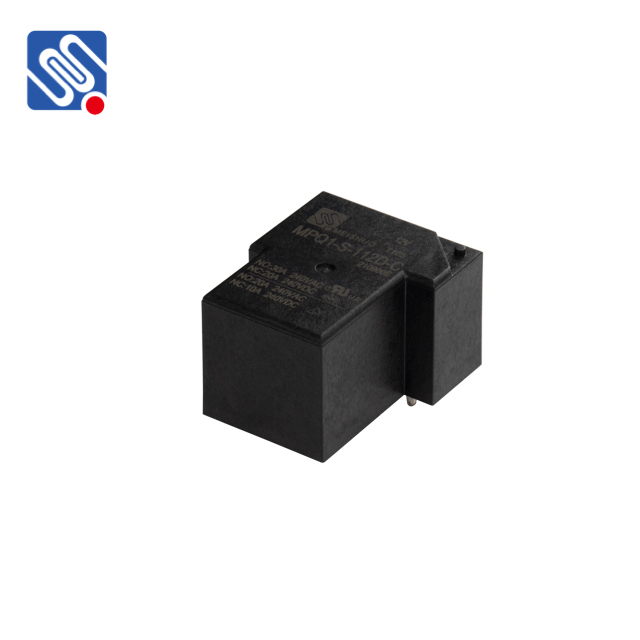

What is a 12V DC Relay?
A relay is an electrically operated switch that consists of an electromagnet, an armature, and a set of contacts. When current flows through the electromagnet (coil), it creates a magnetic field that either attracts or repels a mechanical armature, causing the contacts to open or close, thereby controlling the flow of electricity in the circuit. In the case of a 12V DC relay, the electromagnet is powered by a direct current (DC) of 12 volts.
Relays are classified based on their voltage and current ratings. A 12V DC relay specifically uses a 12V DC voltage to operate the internal electromagnet, which in turn allows the switching of a higher power circuit. The relay is designed to isolate the low-voltage control system from the higher voltage or current circuit, providing an efficient and safe means to control larger loads.
