relay connections： understanding their role and application in electrical systems
Release time:2025-09-15 01:46:19
Relay connections are an essential component in the world of electrical engineering, allowing control over circuits that handle larger amounts of current or voltage. These devices enable efficient operation in a variety of systems, from industrial automation to home appliances. Their ability to operate under low power to control high-power circuits makes them invaluable in modern electronics. In this article, we will delve into the working principle, types, applications, and benefits of relay connections, shedding light on why they are indispensable in electrical systems.
What are Relay Connections?

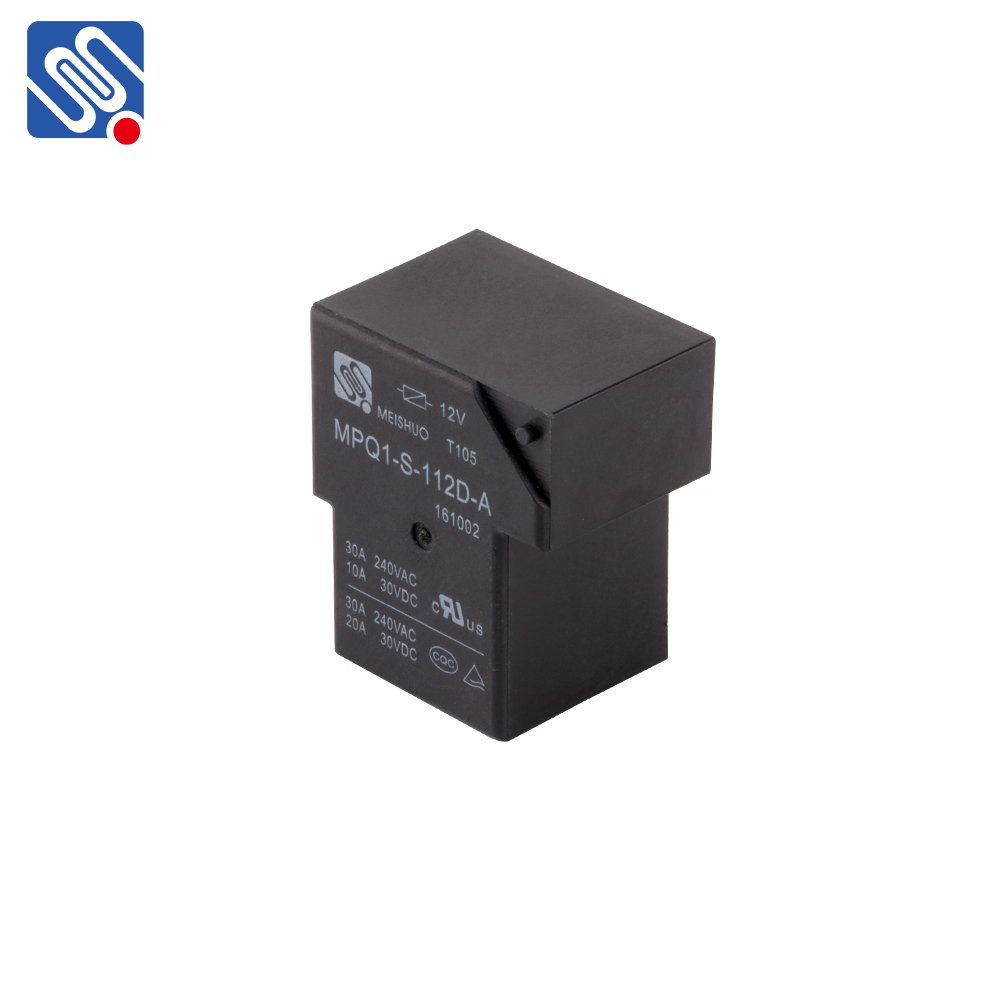

A relay is an electrically operated switch, consisting of a coil of wire, one or more pairs of contacts, and a mechanical armature. The coil, when energized by an electrical current, generates a magnetic field that causes the armature to move, closing or opening the contacts. This movement can either allow or prevent the flow of current in the controlled circuit, based on the type of relay used. Relay connections are established between the control circuit and the load circuit, making it possible for a low-power signal to control a much higher power load.
In a typical relay connection, a control signal, which is usually low voltage or low current, energizes the coil of the relay. This action activates the relay mechanism, which in turn operates the contacts, either opening or closing them to complete or interrupt the power supply to the load. Because of this basic operation, relays provide both electrical isolation and the ability to control high-power circuits with low-power inputs.
