understanding latching relay： a key component in low power control systems
Release time:2025-09-15 20:54:53
Latching relays are an essential component in the world of electrical control systems. These relays stand out due to their ability to retain their switched state without requiring continuous power. Unlike traditional relays, which demand constant energy to maintain their contact position, latching relays provide a more energy-efficient solution, especially in applications where low power consumption is crucial. This article aims to explore the functionality, advantages, applications, and considerations when using latching relays.

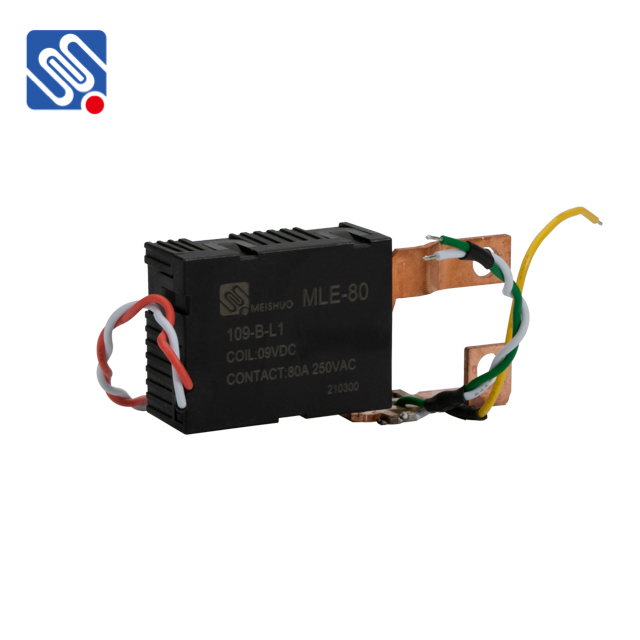

What is a Latching Relay?
A latching relay, also known as a bistable relay, is a type of relay that has two stable states： "on" and "off." It remains in its last state until it receives a signal to switch to the opposite state. This feature differentiates latching relays from standard relays, which require continuous power to maintain their state. The latching mechanism can be either electromagnetic or mechanical, and once the relay has been set to a state, it will hold that state without consuming power.
Working Principle of a Latching Relay
The working principle of a latching relay is based on a special electromagnetic mechanism. Unlike standard relays that rely on a continuous current flow to keep their contacts in place, latching relays use a pulse or a short burst of energy to change the state of the relay. Once activated, the relay locks into place, maintaining its position even when the power supply is turned off. To change the relay’s state, a second pulse or signal is applied, which switches it to the opposite state.
