the role and application of switch relay in modern electronics
Release time:2025-09-19 04:47:22
A Switch Relay is an essential component in modern electronic systems that facilitates the control of high-power devices with low-power signals. In essence, a switch relay acts as an intermediary between a low-power control circuit and a high-power load, enabling systems to control electrical circuits remotely and safely. This versatile device is widely used in various applications, ranging from home automation systems to industrial machinery, providing seamless integration between control circuits and power-hungry systems.

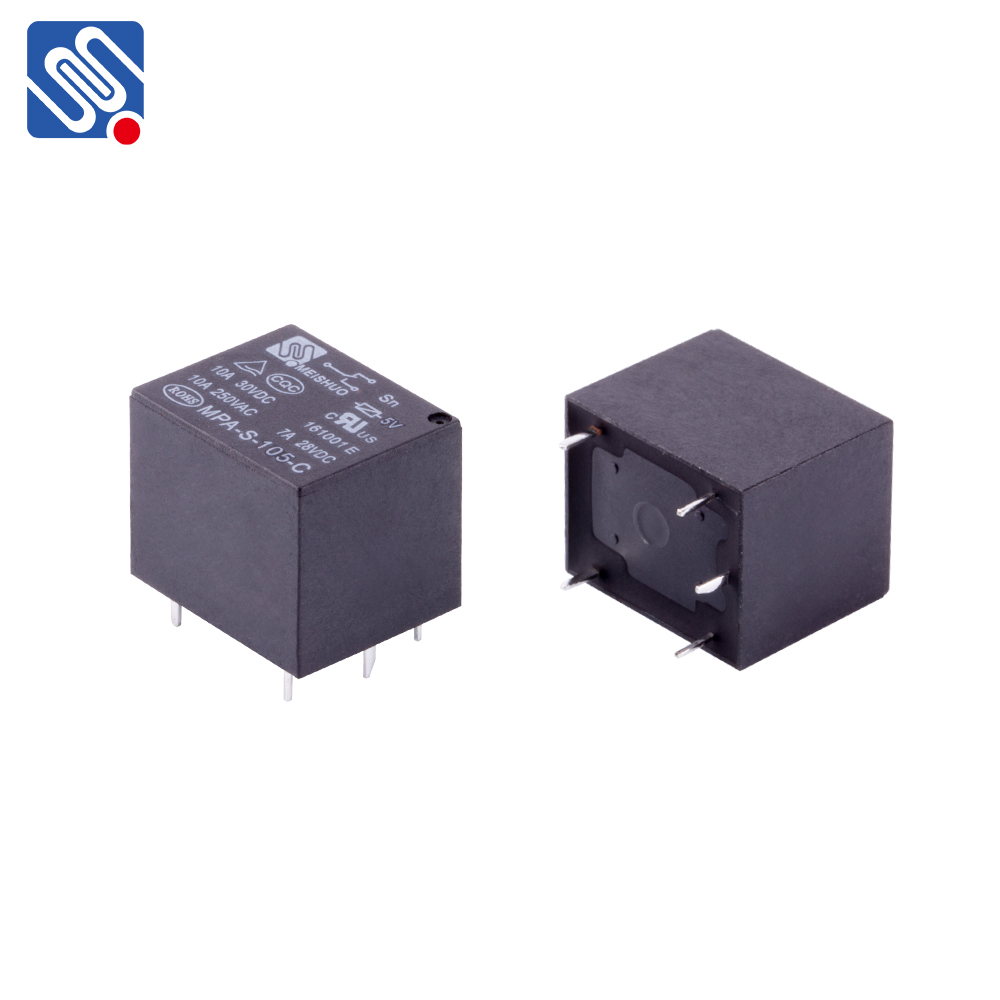

Understanding Switch Relay
A switch relay operates on a relatively simple yet effective principle of electromagnetism. It consists of an electromagnetic coil, a set of contacts, and an armature. When a current flows through the coil, it generates a magnetic field that moves the armature, causing the contacts to either open or close. This change in contact status allows the relay to either make or break an electrical circuit, enabling control over external devices without requiring direct physical interaction.
The relay typically has two main contact types： Normally Open (NO) and Normally Closed (NC). When the relay is inactive, the NO contacts remain open, while the NC contacts remain closed. Once the relay is energized, the NO contacts close, and the NC contacts open, completing the circuit for the external device to be activated or deactivated.
