understanding relay voltage rating: importance, types, and applications
Release time:2025-09-19 14:42:48
Relays are essential electrical components used in a variety of applications, from simple circuit control to complex automation systems. One of the critical specifications to consider when selecting a relay for a particular application is its voltage rating, known as the relay voltage rating. This rating is a key factor in ensuring the safe and reliable operation of relays. In this article, we will explore what relay voltage ratings are, why they are important, and how to choose the right relay based on voltage requirements.

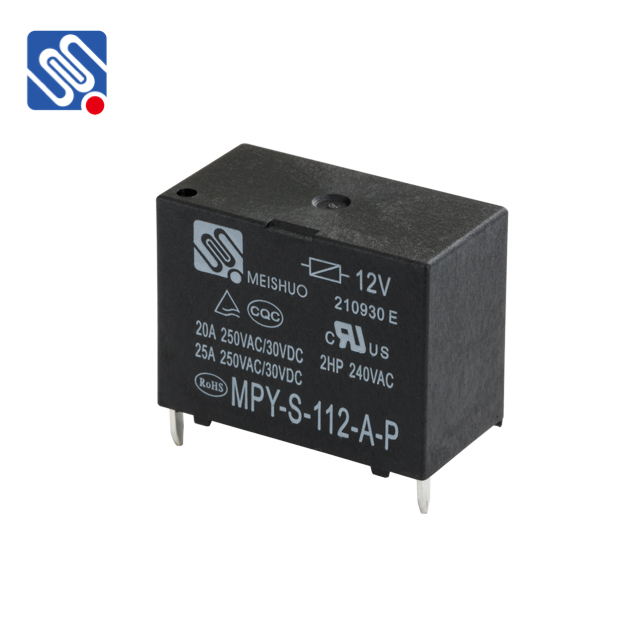

What is Relay Voltage Rating?
Relay voltage rating refers to the voltage levels that the relay can safely handle in different conditions. These conditions include both the coil voltage (the voltage required to activate the relay) and the contact voltage (the voltage that the relay can switch through its contacts). The rating of a relay determines whether it can function properly in a given electrical circuit without experiencing damage or failure. In simpler terms, it's the maximum amount of voltage a relay can safely control without malfunctioning.
Types of Relay Voltage Ratings
Coil Voltage Rating: The coil voltage is the voltage needed to energize the relay coil and activate the switch. This is typically specified in volts (V) and can be either AC (Alternating Current) or DC (Direct Current), depending on the relay type. For instance, a relay might have a coil voltage rating of 12V DC, meaning it requires 12V DC to activate the relay.
