understanding relay circuits: the key to controlling high power with low power
Release time:2025-09-20 19:35:35
A relay circuit is an essential component in electronics, often used to control high power devices with low power signals. This type of circuit allows for the safe operation of devices that require significant electrical energy, while being controlled by a much smaller and safer electrical signal. Relay circuits play a crucial role in a variety of applications, from automotive systems to industrial automation and home appliances.
What is a Relay Circuit?

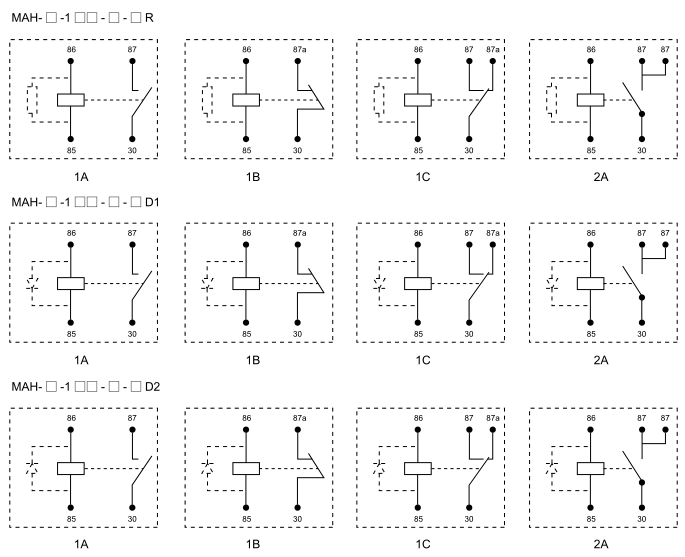

A relay circuit consists of a relay, which is an electromechanical switch that operates by electromagnetism. When a small electrical current flows through the coil of the relay, it generates a magnetic field that causes the switch to close or open. This action allows the circuit to control the connection of high-power devices, such as motors or lights, using a low-power control signal, often from a microcontroller or sensor.
Relays come in various forms, but the most common types include mechanical relays and solid-state relays. Mechanical relays use a physical switch, while solid-state relays employ semiconductor components to achieve the switching action without moving parts. Both types of relays are widely used in different applications depending on factors such as speed, reliability, and cost.
