understanding the 24vdc relay： an essential component in electrical control systems
Release time:2025-09-22 12:57:07
A 24VDC relay is a type of electromagnetic switch that is widely used in various electrical and automation applications. This versatile component allows users to control high-voltage or high-current circuits using a low-voltage control signal, typically 24VDC. Relays like the 24VDC relay are crucial in protecting circuits and facilitating remote control in complex systems. Understanding how a 24VDC relay works, its components, and its applications can help users leverage its benefits for more efficient and safe electrical system designs.

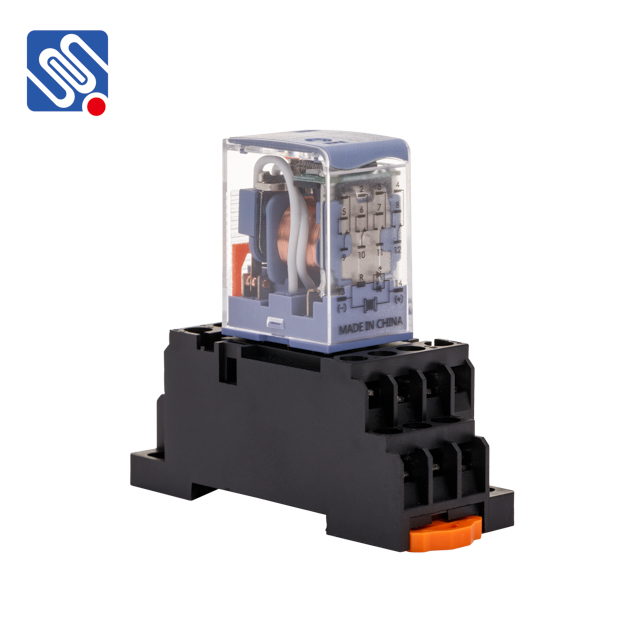

What is a 24VDC Relay?
A 24VDC relay is an electrically operated switch that controls the flow of electricity in a circuit. It operates by using a 24V direct current (DC) voltage to energize an electromagnet within the relay, which in turn moves a set of mechanical contacts. These contacts can either open or close, depending on the type of relay, thus controlling the electrical circuit connected to the relay's output. The relay itself is powered by the 24VDC input, while the controlled circuit can operate at much higher voltages or currents.
Relays generally consist of a coil, a set of contacts, and a mechanical armature. When the 24VDC voltage is applied to the coil, it generates a magnetic field that pulls the armature toward the coil. This movement either opens or closes the contacts, depending on the relay's design. The ability to control these contacts with a low-voltage input allows for safe and efficient operation of larger or more dangerous electrical systems.
