the role and working principle of the electromagnetic relay in modern electrical systems
Release time:2025-09-23 01:41:33
Electromagnetic relays have been an essential component of electrical systems for over a century. Their ability to control high-power circuits with low-power signals has made them a cornerstone in automation, industrial control, and protection systems. Despite the rise of solid-state relays and other advanced technologies, the electromagnetic relay continues to play a vital role in various applications due to its simplicity, reliability, and cost-effectiveness. This article explores the working principle, components, types, and applications of electromagnetic relays, emphasizing their significance in modern electrical systems.
Working Principle of Electromagnetic Relays

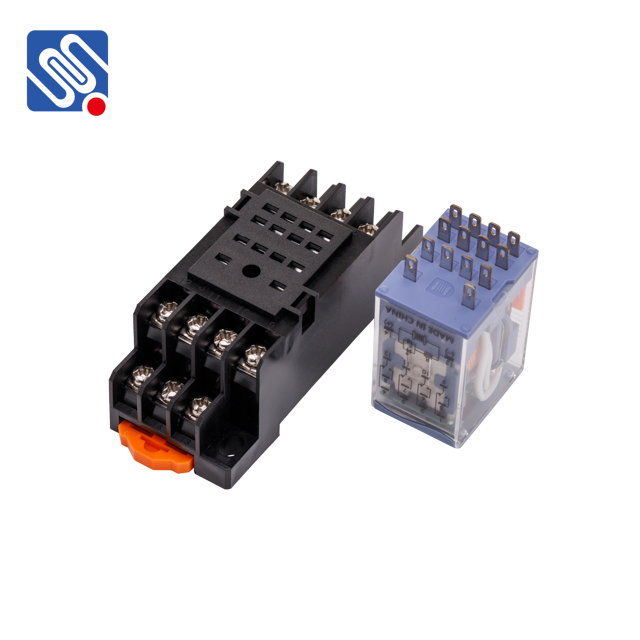

At the core of an electromagnetic relay is an electromagnet, which is typically a coil of wire wound around a metal core. When an electric current flows through the coil, it creates a magnetic field that attracts a movable armature or contact. This armature is connected to one or more electrical contacts that open or close when the armature moves. The movement of the armature is used to switch the state of the relay, either closing or opening the electrical circuit. When the current to the electromagnet is cut off, a spring mechanism returns the armature to its original position, and the relay returns to its default state.
