understanding relay circuit： a key element in electrical control systems
Release time:2025-11-13 02:11:48
Relay circuits are an integral part of many electrical systems, enabling the automation and control of high-power circuits using low-power signals. They are used in a wide variety of applications, from home appliances to industrial machinery, and serve to provide isolation between different parts of a circuit, thereby improving safety and efficiency. This article explores the fundamental principles, components, working mechanisms, and various applications of relay circuits.
What is a Relay Circuit?
At its core, a relay circuit is an electrical circuit that uses a relay to control another circuit. A relay is an electrically operated switch that allows a low-power signal to control a high-power circuit, making it possible to control large loads, such as motors or lights, with a smaller, safer control signal. The key advantage of relay circuits is that they provide electrical isolation between the control circuit and the load circuit, which helps prevent damage to sensitive components and allows for remote operation of high-power systems.

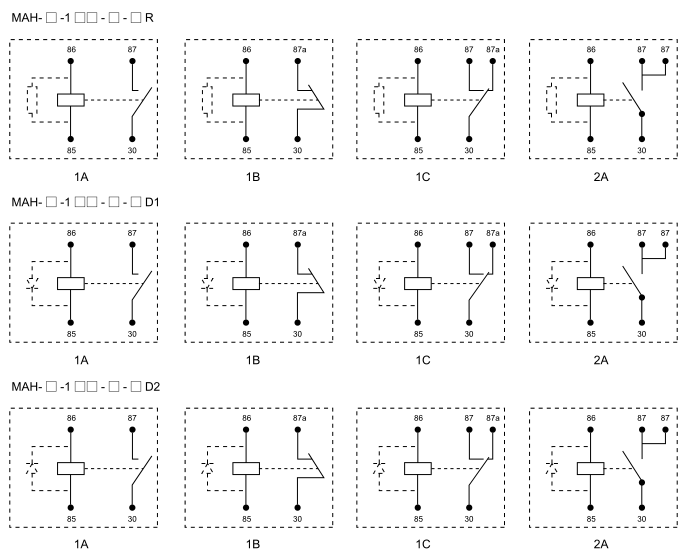

Components of a Relay
