relay circuit design: principles, applications, and considerations
Release time:2025-11-18 06:48:00

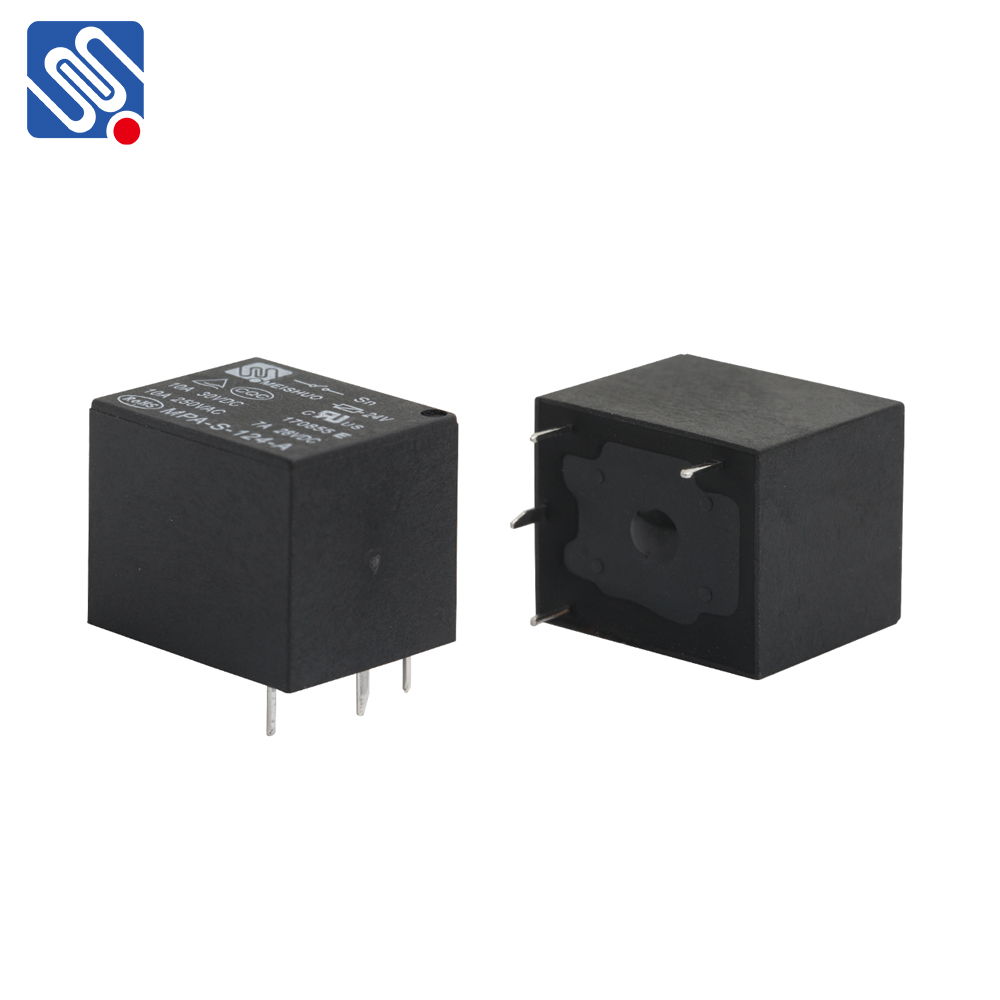

Relay circuit design is an essential aspect of electrical engineering, involving the creation of circuits that utilize relays to control electrical signals. A relay is an electromechanical switch that opens or closes a circuit in response to an electrical input signal. The design of relay circuits is crucial for various applications, from simple household appliances to complex industrial machinery. This article explores the fundamental principles of relay circuit design, its applications, and key considerations that engineers must keep in mind when developing these systems.
Principles of Relay Circuit Design
At its core, a relay circuit is a combination of an electromagnet and a set of contacts. When an electric current passes through the coil of the relay, it generates a magnetic field that pulls the armature, causing the contacts to either open or close. This mechanism allows for the control of high-power circuits with low-power control signals.
There are two main types of relay circuits: Normally Open (NO) and Normally Closed (NC). In a NO relay, the circuit remains open until the relay is activated, at which point the contacts close and the current flows. In contrast, a NC relay is normally closed, and when activated, the contacts open, interrupting the flow of current.
