understanding relay 12v： a comprehensive guide to its function and applications
Release time:2025-11-19 03:38:50
A 12V relay is an electromechanical switch that plays a vital role in controlling high-power circuits with a low voltage signal. Whether used in automotive applications, industrial machinery, or home automation, relays help facilitate the safe and efficient operation of electrical systems. In this article, we will explore the working principle of a 12V relay, its types, features, and the various applications where it is commonly used.

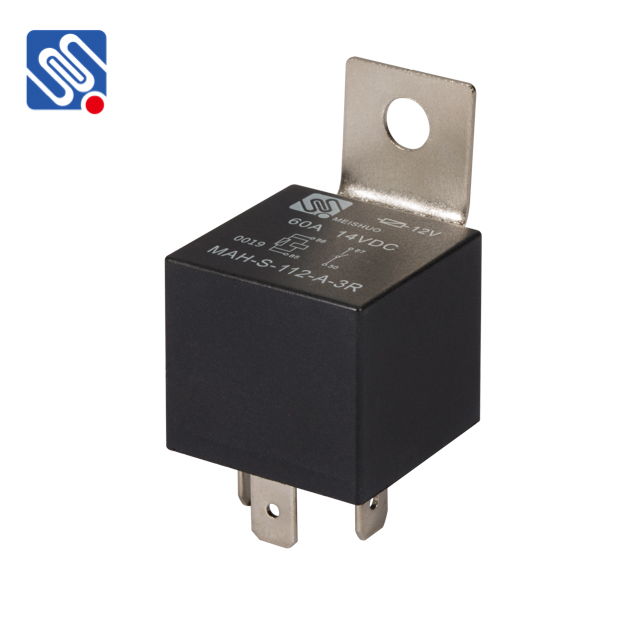

What is a 12V Relay?
A 12V relay is essentially an electrically operated switch that uses an electromagnet to open or close a set of contacts. It allows a low-voltage circuit, typically 12V DC (direct current), to control a high-voltage or high-current circuit, such as those found in automotive electronics or home appliances. The relay consists of two primary components： the coil and the contacts.
The Coil： When a current flows through the coil, it generates a magnetic field. This magnetic field pulls or pushes a movable armature, which in turn moves the contacts.
The Contacts： These are the parts that make or break the electrical connection. Depending on the design, the relay can either have normally open (NO), normally closed (NC), or a combination of both (SPDT—single-pole double-throw) contacts.
