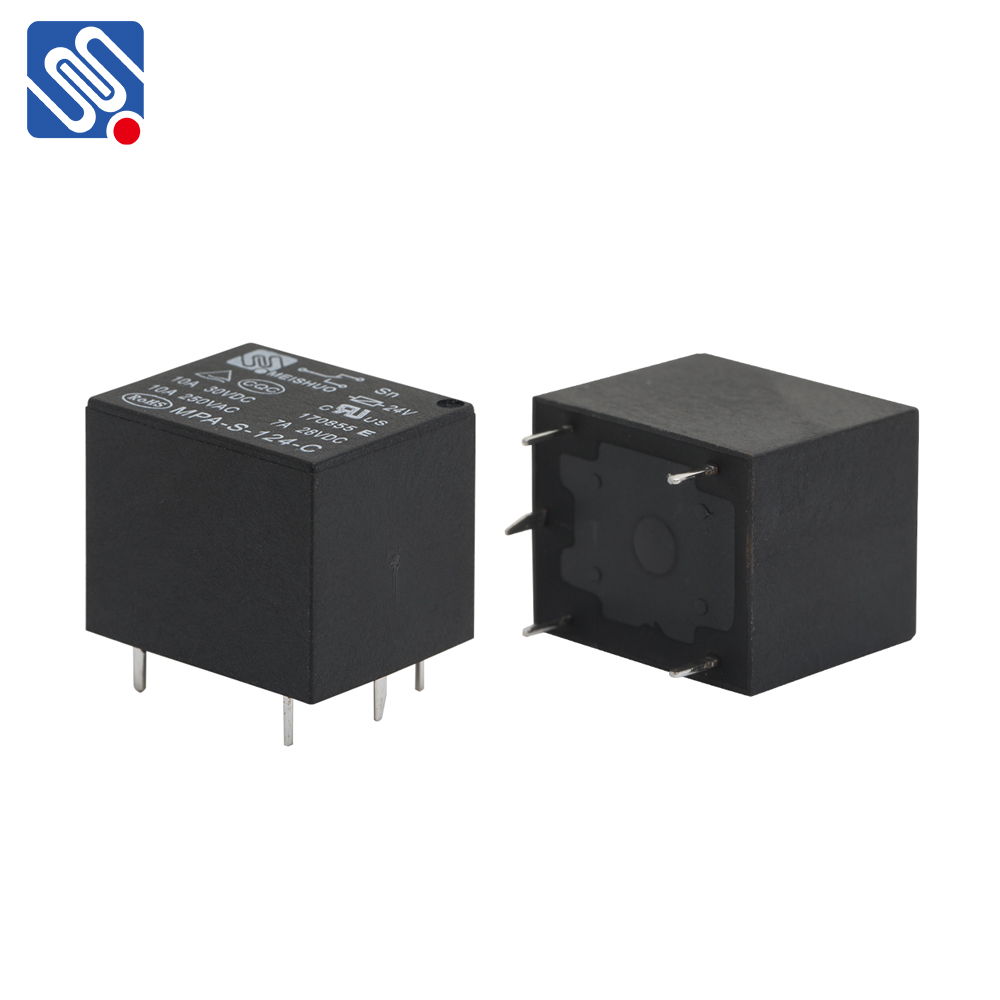

exploring the power of the 12 volt relay： an essential component in modern electronics
Release time:2026-01-07 05:49:25
The 12 volt relay is an essential component in the world of electronics and electrical systems, allowing the control of high-power devices with low-power signals. From automotive applications to home automation systems, these relays serve as crucial links between different circuits, enabling efficient and safe operations. This article will delve into the structure, working principle, applications, and considerations for using 12 volt relays.
Understanding the Structure and Functionality of a 12 Volt Relay
At its core, a relay is an electromechanical switch that employs an electromagnet to control the circuit. The basic structure of a 12 volt relay typically consists of several key components：
Coil： The primary component that receives the input voltage. When a 12-volt supply is applied, the coil generates a magnetic field, which is essential for the relay's operation.
Armature： A movable iron lever that is influenced by the magnetic field created by the coil. When the coil is energized, the armature shifts position.
Contacts： These are the conductive parts that either open or close the circuit. A 12 volt relay may have normally open (NO) contacts, which close the circuit when the relay is energized, or normally closed (NC) contacts, which open the circuit under the same condition.
