understanding electromagnetic relay： principles, applications, and benefits
Release time:2025-12-25 19:27:22

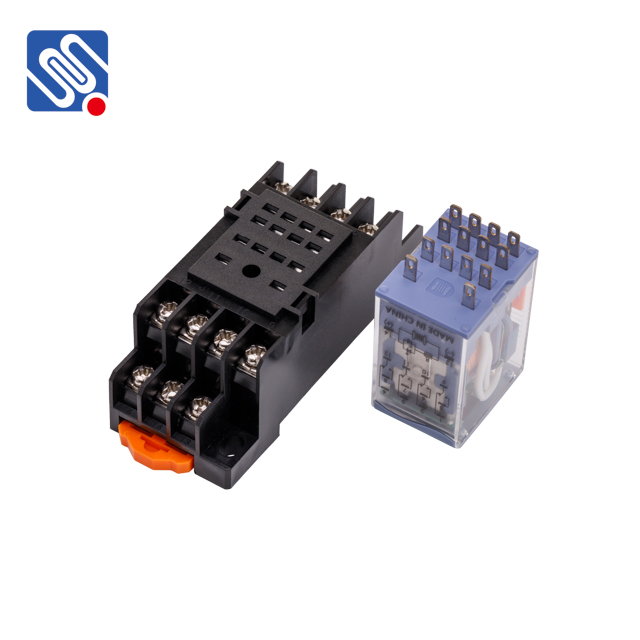

An electromagnetic relay is a vital component in the realm of electrical engineering, serving as a switch that utilizes electromagnetic principles to control the flow of electricity in a circuit. Unlike traditional mechanical switches, electromagnetic relays can manage high voltage and current loads while being activated by a low power electrical signal. This unique characteristic makes them indispensable in various applications, from residential appliances to complex industrial automation systems.
Principle of Operation
At the heart of an electromagnetic relay lies a coil of wire wound around a core, typically made of ferromagnetic material. When an electrical current flows through the coil, it generates a magnetic field. This magnetic field attracts a movable armature, which in turn makes or breaks connections between electrical contacts, often referred to as "poles."
Essentially, there are two main configurations for these contacts： Normally Open (NO) and Normally Closed (NC). In a Normally Open configuration, the circuit is incomplete until the relay is energized; thus, the current only flows once the magnetic field pulls the armature. Conversely, a Normally Closed configuration allows current to flow until the relay is activated, breaking the connection once energized.
