In the world of electrical engineering, relays serve as the unsung heroes that enable the control and protection of complex electrical systems. From industrial automation to power distribution networks, these electromechanical devices play a crucial role in ensuring safe and efficient operation. However, with a wide variety of relay types and specifications available in the market, selecting the right relay for a specific application can be a daunting task. This article aims to provide a comprehensive comparison of key relay specifications, helping engineers and technicians make informed decisions when choosing the appropriate relay for their needs.
One of the most fundamental specifications to consider when comparing relays is the coil voltage. This parameter determines the voltage required to activate the relay's electromagnet and initiate the switching action. Relays are available in a range of coil voltages, including 5V, 12V, 24V, and 120V, with both AC and DC options. The choice of coil voltage depends on the power supply available in the application, as well as the safety requirements of the system. For example, low-voltage DC relays are often preferred in automotive and consumer electronics applications, while higher-voltage AC relays are commonly used in industrial settings.

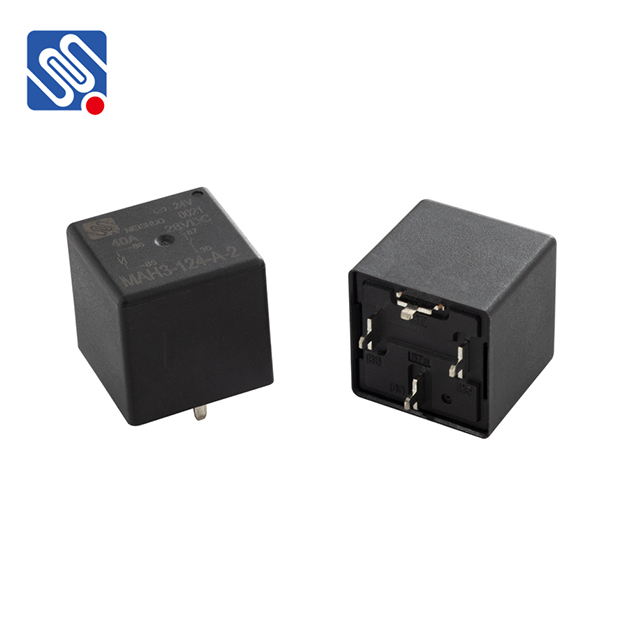

Another critical specification is the contact rating, which refers to the maximum current and voltage that the relay's contacts can handle. This parameter is essential for ensuring that the relay can safely switch the load without damage or failure. Contact ratings are typically expressed in terms of current (in amps) and voltage (in volts), and they can vary significantly between different relay types. For instance, a general-purpose relay might have a contact rating of 10A at 250V AC, while a heavy-duty industrial relay could handle up to 100A at 600V AC. It is important to select a relay with a contact rating that exceeds the maximum load current and voltage in the application to ensure reliable operation.
The switching speed of a relay is another important factor to consider. This specification refers to the time it takes for the relay to change from the de-energized state to the energized state (actuation time) and vice versa (release time). Fast-switching relays are essential in applications where rapid response is required, such as in high-speed data acquisition systems or precision control applications. Conversely, slower-switching relays may be sufficient for applications where response time is not critical, such as in lighting control or simple motor control circuits. The switching speed of a relay is influenced by factors such as the coil design, contact material, and mechanical construction.
The number of poles and throws is another key specification that differentiates relays. A pole refers to the number of separate circuits that the relay can switch, while a throw refers to the number of positions each pole can switch to. Common configurations include single-pole single-throw (SPST), single-pole double-throw (SPDT), double-pole single-throw (DPST), and double-pole double-throw (DPDT). The choice of pole and throw configuration depends on the number of circuits that need to be controlled and the desired switching logic. For example, an SPDT relay is ideal for applications where a single circuit needs to be switched between two different paths, while a DPDT relay can control two separate circuits simultaneously.
The operating temperature range is another important specification to consider, especially in harsh environments. Relays are designed to operate within a specific temperature range, and exceeding this range can lead to reduced performance or premature failure. The operating temperature range is typically specified by the manufacturer and can vary depending on the relay's construction and materials. For example, a standard relay might have an operating temperature range of -40°C to 85°C, while a high-temperature relay could operate up to 125°C or higher. It is important to select a relay that can withstand the temperature extremes of the application environment.
In addition to these key specifications, there are several other factors to consider when comparing relays, such as the type of contact material, the mechanical life expectancy, and the level of insulation. Contact materials such as silver, gold, and palladium are commonly used, each with their own advantages and disadvantages in terms of conductivity, corrosion resistance, and cost. The mechanical life expectancy refers to the number of times the relay can switch before it begins to degrade, and this is typically specified in terms of millions of operations. The level of insulation is also important, as it determines the relay's ability to withstand high voltages and prevent electrical leakage.
In conclusion, comparing relay specifications is a critical step in selecting the right relay for a specific application. By carefully evaluating parameters such as coil voltage, contact rating, switching speed, pole and throw configuration, operating temperature range, and other key factors, engineers and technicians can ensure that they choose a relay that meets the performance and reliability requirements of their system. Whether it's for a simple control circuit or a complex industrial application, understanding the differences between relay specifications is essential for achieving optimal performance and ensuring the safety and efficiency of electrical systems.
