understanding the 24v 10a relay： a comprehensive guide
Release time:2025-09-27 04:07:16
Relays are critical components in electrical systems, allowing for the control of high-power devices through low-power signals. The 24V 10A relay is one of the most commonly used relays in various applications, ranging from industrial automation to automotive systems. Understanding its functionality, features, and applications is essential for engineers and technicians working with electrical control circuits. This article will provide an overview of the 24V 10A relay, explaining how it works, its specifications, and where it is used.

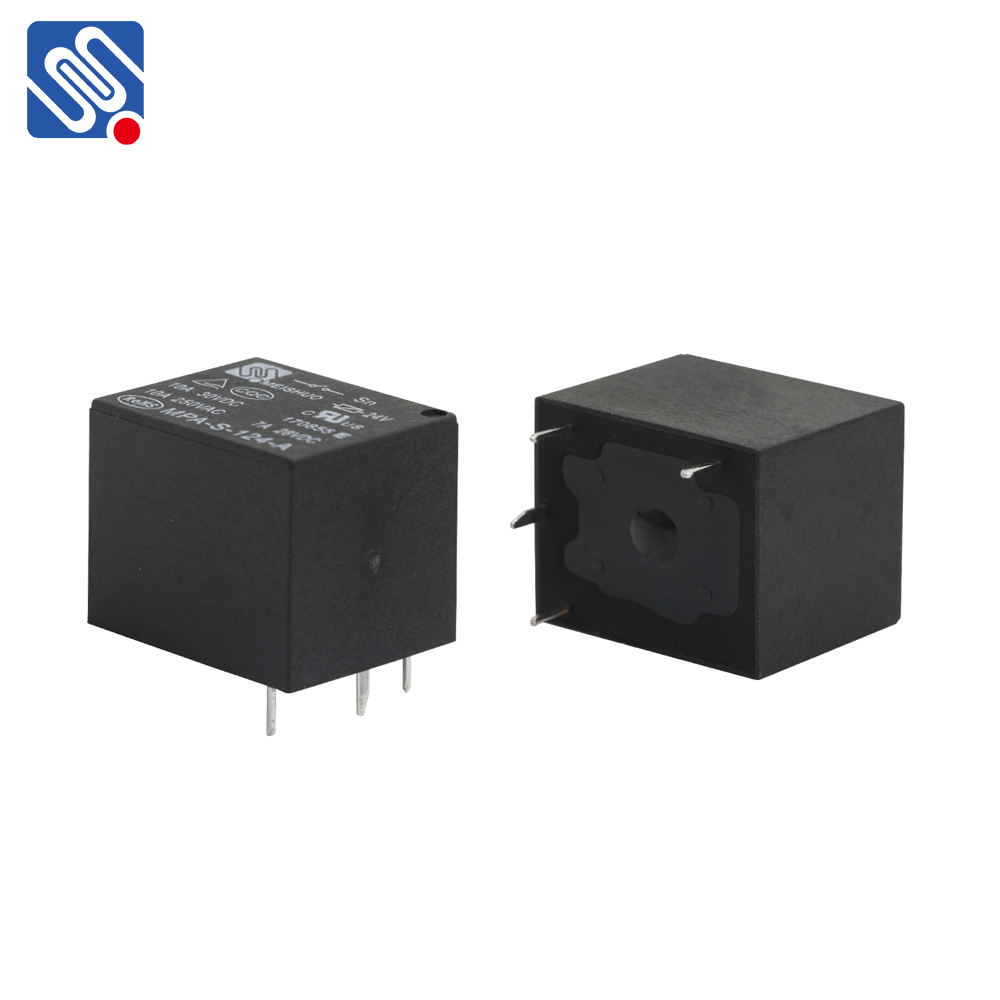

What is a 24V 10A Relay?
A relay is an electrically operated switch that opens or closes its contacts in response to a control signal. The 24V 10A relay is a type of electromagnetic relay, where the control voltage for the coil is 24V (typically DC) and the relay can handle a maximum current of 10A on its contacts. This makes it suitable for switching power-hungry devices like motors, heaters, lights, or pumps without direct contact between the control circuit and the high-power load.
Working Principle of a 24V 10A Relay
The basic working principle of a 24V 10A relay is straightforward. It consists of an electromagnet (coil), contacts, and a spring mechanism. When a voltage (24V in this case) is applied to the coil, it generates a magnetic field that attracts or repels a metal armature. This armature is connected to a set of contacts that control the flow of current in the connected circuit.
