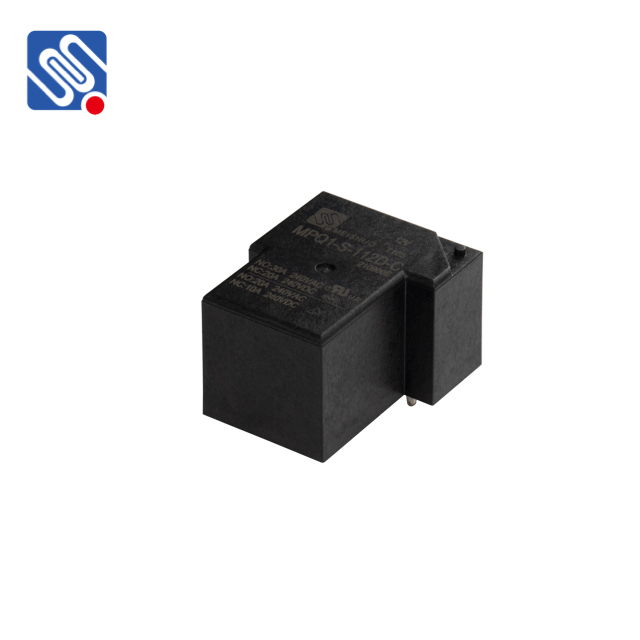

understanding the 12v dc relay： a comprehensive overview
Release time:2026-01-20 19:02:30
The 12V DC relay is a vital component in the realm of electrical engineering and electronics, enabling the control of higher power circuits using lower power signals. This electromechanical device acts as a switch that is activated by an electrical signal, making it indispensable in various applications, from household appliances to industrial machinery. Understanding how a 12V DC relay functions, its components, the different types available, and its applications can help users appreciate its significance within electronic systems.
Components of a 12V DC Relay
A typical 12V DC relay consists of several key components：
Electromagnetic Coil： This coil is responsible for creating a magnetic field when current flows through it. The 12V DC power supply energizes the coil, enabling the relay to perform its switching function.
Armature： The armature is a movable iron lever that is attracted to the coil when it is energized. This mechanical movement opens or closes the electrical contacts (also referred to as terminals) of the relay.
Contacts： These are the conductive parts that open or close to make or break an electrical circuit. There are typically two types of contacts： Normally Open (NO) and Normally Closed (NC). NO contacts close when the relay is activated, while NC contacts open.
