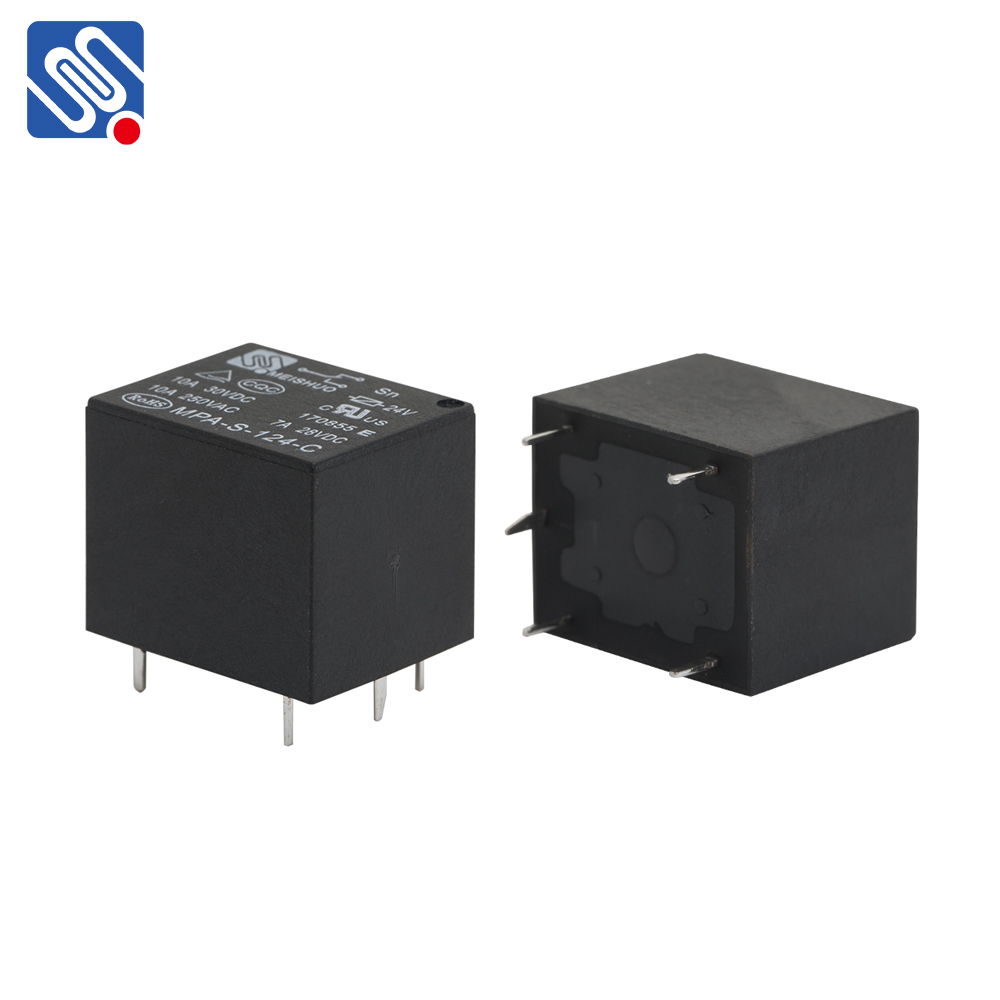

understanding the 12 volt relay： a comprehensive guide to its function and applications
Release time:2025-12-11 16:30:50
A 12 volt relay is a key component in many electrical and electronic systems, serving as an electronic switch that allows low-power control circuits to switch higher-power devices. This article aims to provide a comprehensive understanding of the 12 volt relay, its working principles, features, and common applications. Whether you're an electronics enthusiast, a hobbyist, or working on automotive systems, knowing how a 12 volt relay functions can be crucial for many practical applications.
What is a 12 Volt Relay?
A 12 volt relay is an electromagnetic switch that operates at 12 volts, a common voltage used in automotive, industrial, and consumer electronics. It consists of a coil of wire, which when energized, creates a magnetic field that pulls a switch mechanism to close or open a circuit. This allows a small, low-voltage control signal (such as from a microcontroller or a simple switch) to control a high-voltage, high-current device.
How Does a 12 Volt Relay Work?
The basic working principle of a 12 volt relay is simple. It has two main parts： the control circuit and the switched circuit. The control circuit consists of a coil that is energized when a voltage (12V) is applied across it. The magnetic field generated by the coil attracts a movable armature, which is connected to a set of contacts. These contacts either close or open the switched circuit, depending on the type of relay.
